CS 635: Advanced Object-Oriented Design & Programming

Doc 30, Interpreter Slide # 2

Interpreter

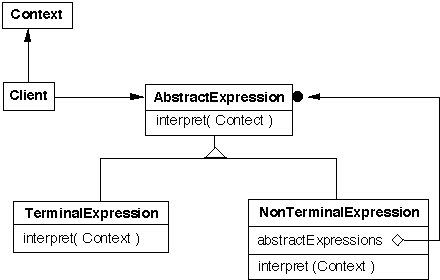

Structure

Given a language defined by a simple grammar with rules like:

R ::= R₁ R₂ ... R_n

you create a class for each rule

The classes can be used to construct a tree that represents elements of the language

Doc 30, Interpreter Slide # 3

Example - Boolean Expressions

Constant |

Or |

And |

Not |

BooleanExpression

public interface BooleanExpression{
     public boolean evaluate( Context values );
     public BooleanExpression replace( String varName,
                                              BooleanExpression replacement );
     public Object clone();
     public String toString();
}

Doc 30, Interpreter Slide # 4

And

public class And implements BooleanExpression {
     private BooleanExpression leftOperand;
     private BooleanExpression rightOperand;

     public And( BooleanExpression leftOperand,
                         BooleanExpression rightOperand) {
          this.leftOperand = leftOperand;
          this.rightOperand = rightOperand;
     }

     public boolean evaluate( Context values ) {
          return leftOperand.evaluate( values ) &&
                     rightOperand.evaluate( values );
     }

     public BooleanExpression replace( String varName,
                BooleanExpression replacement ) {
          return new And( leftOperand.replace( varName, replacement),
                         rightOperand.replace( varName, replacement) );
     }

     public Object clone() {
          return new And( (BooleanExpression) leftOperand.clone( ),
                         (BooleanExpression)rightOperand.clone( ) );
     }

     public String toString(){
          return "(" + leftOperand.toString() + " and " +
                     rightOperand.toString() + ")";
     }
}

Doc 30, Interpreter Slide # 5

Or

public class Or implements BooleanExpression {
     private BooleanExpression leftOperand;
     private BooleanExpression rightOperand;

     public Or( BooleanExpression leftOperand,
                         BooleanExpression rightOperand) {
          this.leftOperand = leftOperand;
          this.rightOperand = rightOperand;
     }

     public boolean evaluate( Context values ) {
          return leftOperand.evaluate( values ) ||
                    rightOperand.evaluate( values );
     }

     public BooleanExpression replace( String varName,
                BooleanExpression replacement ) {
          return new Or( leftOperand.replace( varName, replacement),
                         rightOperand.replace( varName, replacement) );
     }

     public Object clone() {
          return new Or( (BooleanExpression) leftOperand.clone( ),
                         (BooleanExpression)rightOperand.clone( ) );
     }

     public String toString() {
          return "(" + leftOperand.toString() + " or " +
                     rightOperand.toString() + ")";
     }
}

Doc 30, Interpreter Slide # 6

Not

public class Not implements BooleanExpression {
     private BooleanExpression operand;

     public Not( BooleanExpression operand) {
          this.operand = operand;
     }

     public boolean evaluate( Context values ) {
          return  ! operand.evaluate( values );
     }

     public BooleanExpression replace( String varName,
           BooleanExpression replacement ) {
          return new Not( operand.replace( varName, replacement) );
     }

     public Object clone() {
          return new Not( (BooleanExpression) operand.clone( ) );
     }

     public String toString() {
          return "( not " +  operand.toString() + ")";
     }

Doc 30, Interpreter Slide # 7

Constant

public class Constant implements BooleanExpression {
     private boolean value;
     private static Constant True = new Constant( true );
     private static Constant False = new Constant( false );

     public static Constant getTrue() {
          return True;
     }

     public static Constant getFalse(){
          return False;
     }

     private Constant( boolean value) {
          this.value = value;
     }

     public boolean evaluate( Context values ) {
          return  value;
     }

     public BooleanExpression replace( String varName,
                BooleanExpression replacement ) {
          return this;
     }

     public Object clone() {
          return this;
          }

     public String toString() {
          return String.valueOf( value );
     }
}

Doc 30, Interpreter Slide # 8

Variable

public class Variable implements BooleanExpression {
     private static Hashtable flyWeights = new Hashtable();

     private String name;

     public static Variable get( String name ) {
          if ( ! flyWeights.contains( name ))
               flyWeights.put( name , new Variable( name ));

          return (Variable) flyWeights.get( name );
     }

     private Variable( String name ) {
          this.name = name;
     }

     public boolean evaluate( Context values ) {
          return values.getValue( name );
     }

     public BooleanExpression replace( String varName,
                BooleanExpression replacement ) {
          if ( varName.equals( name ) )
               return (BooleanExpression) replacement.clone();
          else
               return this;
     }

     public Object clone() {
          return this;
     }

     public String toString() { return name; }
}

Doc 30, Interpreter Slide # 9

Context

public class Context {
     Hashtable values = new Hashtable();

     public boolean getValue( String variableName ) {
          Boolean wrappedValue = (Boolean) values.get( variableName );
          return wrappedValue.booleanValue();
     }

     public void setValue( String variableName, boolean value ) {
          values.put( variableName, new Boolean( value ) );
     }
}

Doc 30, Interpreter Slide # 10

Sample Use

public class Test {
     public static void main( String args[] ) throws Exception  {
          BooleanExpression left =
               new Or(  Constant.getTrue(), Variable.get( "x" ) );
          BooleanExpression right =
               new And(  Variable.get( "w" ), Variable.get( "x" ) );

          BooleanExpression all = new And(  left, right );

          System.out.println( all );
          Context values = new Context();
          values.setValue( "x", true );
          values.setValue( "w", false );

          System.out.println( all.evaluate( values ) );
          System.out.println( all.replace( "x", right ) );
          }
     }

Output
((true or x) and (w and x))
false
((true or (w and x)) and (w and (w and x)))

Doc 30, Interpreter Slide # 11

Consequences

Implementing the grammar is easy

Complex grammars are hard to maintain

Adding new ways to interpret expressions

The visiter pattern is useful here

Implementation

Flyweight

If terminal symbols are repeated many times using the Flyweight pattern can reduce space usage

The above example has each terminal class manage the flyweights for its objects, since Java does limited support for protecting constructors
