Observer

Use the Observer pattern:

• When an abstraction has two aspects, one dependent on the other.

• When a change to one object requires changing others, and you don't how many objects need to be changed

• When an object should be able to notify other objects without making assumptions about who these objects are.


Doc 7, Observer Slide # 3

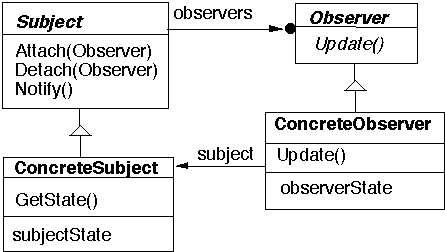

Doc 7, Observer Slide # 4

---

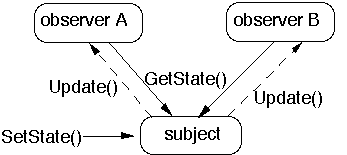

Doc 7, Observer Slide # 5

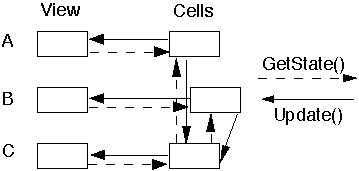

SpreadSheet Example

---

Doc 7, Observer Slide # 6

Java's Implementation

Java's observer interface is the Observer abstract class in the pattern

Java's Observable class is the Subject abstract class in the pattern

Whenever the Observable instance changes,
it notifies all of its observers

Notification is done by calling the update() method on all observers.

Doc 7, Observer Slide # 7

Adds an observer to the observer list.

Clears an observable change.

Counts the number of observers.

Deletes an observer from the observer list.

Deletes observers from the observer list.

Returns a true boolean if an observable change has occurred.

Notifies all observers if an observable change occurs.

Notifies all observers of the specified observable change which occurred.

Sets a flag to note an observable change.

Called when observers in the observable list need to be updated

Doc 7, Observer Slide # 8

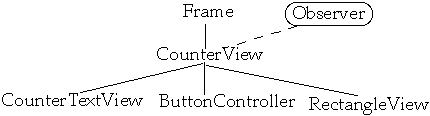

The Classes

Doc 7, Observer Slide # 9

Counter

CounterButton

Doc 7, Observer Slide # 10

Doc 7, Observer Slide # 11

/**
 * A counter can increase/decrease by 1. Each time a counter
 * changes value, it notifies its observers of the type of
 *     change.
 */

class Counter extends Observable
     {
     public static final String INCREASE = "increase";
     public static final String DECREASE = "decrease";

     private int count = 0;
     private String label;

     public Counter( String label )     {     this.label = label; }

     public String label()               {  return label; }
     public int value()                     {  return count; }
     public String toString()           {  return String.valueOf( count );}

     public void increase()
          {
          count++;
          setChanged();
          notifyObservers( INCREASE );
          }

     public void decrease()
          {
          count--;
          setChanged();
          notifyObservers( DECREASE );
          }
     }

Doc 7, Observer Slide # 12

/**
 * IncreaseDetector is an observer that observes counters.
 * IncreaseDetector counts the number of times one of its
 * observables increases.
 */

class IncreaseDetector extends Counter implements Observer
     {
     public IncreaseDetector( String label )
          {
          super( label );
          }

     public void update( Observable whatChanged,
                                   Object message)
          {
          if ( message.equals( Counter.INCREASE) )
               increase();
          }
     }

Doc 7, Observer Slide # 13

/**
 * An abstract class for changing a counter each time the button is
 * pressed
 */

abstract class CounterButton extends Button
     {
     protected Counter count;

     public CounterButton( String buttonName, Counter count )
          {
          super( buttonName );
          this.count = count;
          }

     public boolean action( Event processNow, Object argument )
          {
          changeCounter();
          return true;
          }

     abstract protected void changeCounter();
     }

Doc 7, Observer Slide # 14

/**
 * A button that increases a counter each time it is pressed
 */

class IncreaseButton extends CounterButton
     {
     public IncreaseButton( Counter count )
          {
          super( "Increase", count );
          }

     protected void changeCounter()
          {
          count.increase();
          }
     }

/**
 * A button that decreases a counter each time it is pressed
 */

class DecreaseButton extends CounterButton
     {
     public DecreaseButton( Counter count )
          {
          super( "Decrease", count );
          }

     protected void changeCounter()
          {
          count.decrease();
          }
     }

Doc 7, Observer Slide # 15

/**
 * A parent window view that observes a counter
 */

class CounterView extends Frame implements Observer
     {
     public CounterView( String label,
                                   int x, int y, int width, int height )
          {
          setTitle( label );
          reshape(x, y,  width, height );
          setLayout( new FlowLayout() );
          }

     /**
      * Redraw the window when an observed counter changes
      */

     public void update(Observable counter, Object argument)
          {
          repaint();
          }
     }

Doc 7, Observer Slide # 16

/**
 * A window for displaying the value of a counter in ascii
 */

class CounterTextView extends CounterView
     {
     Counter model;

     public CounterTextView( Counter model, String label,
                                        int x, int y, int width, int height )
          {
          super( label, x, y, width, height );
          this.model = model;
          model.addObserver( this );

          show();
          }

     public  void  paint(  Graphics  display  )
          {
          int y = bounds().height - 20;
          int x = 20;
          display.drawString(  "The value of " + model.label() +
                                    " is " + model , x, y  );
          }

Doc 7, Observer Slide # 17

/**
 * A window for changing the value of a counter
 */

class  ButtonController extends CounterView
     {
     public ButtonController( Counter model, int x, int y,
                                        int width, int height )
          {
          super(  model.label(), x, y, width, height );
          model.addObserver( this );

          // show the value of the counter
          new CounterTextView( model,
                                   "Value of " + model.label(),
                                         x + width + 5,y, 150, 50);

          // buttons to change counter
          add( new IncreaseButton( model ));
          add( new DecreaseButton( model ));
          show();
          }
     }

Doc 7, Observer Slide # 18

/**
 * Draws a colored rectangle that depends on two counters.
 * One counter is the width, the other counter is the height
 * of the rectangle. The color of rectangle varies with its shape
 */

class RectangleView  extends CounterView
     {
     Counter width;
     Counter height;

     public RectangleView( Counter rectWidth,
                                   Counter rectHeight,
                                        int x, int y )
          {
          super( "Rectangle", x, y, 150, 150 );
          height =  rectHeight;
          width = rectWidth;
          rectWidth.addObserver( this );
          rectHeight.addObserver( this );
          show();
          }

Doc 7, Observer Slide # 19

     public  void  paint(  Graphics  display  )
          {
          int x = 10;
          int y = 10;

          // Magnify value by 5 to get a bigger visual effect
          int height =  5 * this.height.value();
          int width = 5 * this.width.value();

          // Determine color. Colors chosen for fun.
          // The factor of 3 is just to magnify effect of change
          if (( width >= 0 ) && ( height >= 0 ))
               display.setColor( new Color( 3*width, 3*height,
                                                  width + height) );
          else if (( width < 0 ) && ( height >= 0 ))
               display.setColor( Color.pink );
          else if (( width >= 0 ) && ( height < 0 ))
               display.setColor( Color.orange );
          else if (( width < 0 ) && ( height < 0 ))
               display.setColor( Color.red );

          display.fillRect(x, y, Math.abs(width), Math.abs( height ) );
          }
     }

Doc 7, Observer Slide # 20

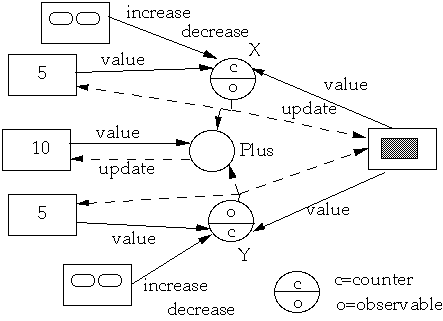

Sample Program

class TestButton
     {
     public  static  void  main( String  args[] ){
          Counter x = new Counter( "x" );
          Counter y = new Counter( "y" );

          IncreaseDetector plus = new IncreaseDetector( "Pluses" );
          x.addObserver( plus );
          y.addObserver( plus );

          new ButtonControler( x,  30, 30, 150, 50 );
          new ButtonControler( y,  30, 100, 150, 50 );

          new CounterTextView( plus, "# of increases",
                                             30, 170, 150, 50);
          new RectangleView( x, y, 340, 30 );
          }
     }

Doc 7, Observer Slide # 21

---

Doc 7, Observer Slide # 22

Consequences

Support for broadcast communication

Unexpected updates

Simple change in subject can cause numerous updates, which can be expensive or distracting

Subject can not perform any work until all observers are done

---

Doc 7, Observer Slide # 23

Implementation Issues

Pass information in the update method

Doc 7, Observer Slide # 24

• Have methods that change the state trigger update



class Counter extends Observable

{// some code removed
public void increase()

{
count++;
setChanged();
notifyObservers( INCREASE );
}
}

It might be inefficient or cause too many screen updates

€ Have clients call Notify at the right time

class Counter extends Observable


{// some code removed
public void increase()  { count++; }
}

{
Counter pageHits = new Counter();
pageHits.increase();
pageHits.increase();
pageHits.increase();

pageHits.notifyObservers();
}

Doc 7, Observer Slide # 25

class ComplexObservable extends Observable
     {
     Widget frontPart = new Widget();
     Gadget internalPart = new Gadget();

     public void trickyChange()
          {
          frontPart.widgetChange();
          internalpart.anotherChange();
          setChanged();
          notifyObservers( );
          }
     }

class MyBetterClass extends ComplexObservable
     {
     Gear backEnd = new Gear();

     public void trickyChange()
          {
          super.trickyChange();
          backEnd.yetAnotherChange();
          setChanged();
          notifyObservers( );
          }
     }

Doc 7, Observer Slide # 26

class ComplexObservable extends Observable
     {
     Widget frontPart = new Widget();
     Gadget internalPart = new Gadget();

     /**
      * Trigger update to observers
      */
     public void trickyChange()
          {
          doThisChangeWithFactoryMethod();
          setChanged();
          notifyObservers( );
          }

     private void doThisChangeWithTemplateMethod()
          {
          frontPart.widgetChange();
          internalpart.anotherChange();
          }
     }

class MyBetterClass extends ComplexObservable
     {
     Gear backEnd = new Gear();

     private void doThisChangeWithTemplateMethod()
          {
          backEnd.yetAnotherChange();
          }
     }

Doc 7, Observer Slide # 27

class IncreaseDetector extends Counter implements Observer
     { // stuff not shown

     public void update( Observable whatChanged, Object
message)
          {
          if ( message.equals( INCREASE) )
               increase();
          }
     }

class Counter extends Observable
     {          // some code removed
     public void increase()
          {
          count++;
          setChanged();
          notifyObservers( INCREASE );
          }
     }

Doc 7, Observer Slide # 28

class IncreaseDetector extends Counter implements Observer
     { // stuff not shown

     public void update( Observable whatChanged )
          {
          if ( whatChanged.didYouIncrease() )
               increase();
          }
     }


class Counter extends Observable

{// some code removed
public void increase()

{
count++;
setChanged();
notifyObservers( );
}
}
