	CS 635 Advanced Object-Oriented Design & Programming Spring Semester, 2004 Pipes Filters and Broker
	Previous Lecture Notes Index © 2004, All Rights Reserved, SDSU & Roger Whitney San Diego State University -- This page last updated 22-Apr-04

Reference
Pattern-Oriented Software Architecture, Buschmann et al., 1996, Wiley, pp 53-70, 99-122


Doc 18, Pipes Filters and Broker Slide # 2

Pipes & Filters

Unix Example

ls | grep -i b | wc -l

Context
Processing data streams

Problem
Building a system that processes or transforms a stream of data

Forces

Small processing steps are easier to reuse than large components

Non-adjacent processing steps do not share information

System changes should be possible by exchanging or recombining processing steps, even by users

Final results should be presented or stored in different ways


Doc 18, Pipes Filters and Broker Slide # 3

Solution
Divide task into multiple sequential processing steps or filter components

Output of one filter is the input of the next filter

Filters process data incrementally

Fitlers does not wait to get all the data before processing

Data source – input to the system

Data sink – output of the system

Pipes - connect the data source, filters and data sink

Pipe implements the data flow between adjacent processes steps

Processing pipeline – sequence of filters and pipes

Pipeline can process batches of data


Doc 18, Pipes Filters and Broker Slide # 4

Structure

A Filter can be triggered by:

Subsequent pipeline element pulls output from the filter

Previous pipeline element pushes new data into filter

Active Filter – pulls data from input and pushes data down the pipeline

If two active filters are adjacent the pipe between them synchronizes them


Doc 18, Pipes Filters and Broker Slide # 5

Some Implementation issues
Dividing the system into separate tasks
Data format passed between filters
This may require filters to convert from common format to a usable format

Implementing the pipes
Filter could directly push/pull data from another filter

Using a separate pipe mechanism

More flexable
Makes it easier to test filters
Permits active filters


Doc 18, Pipes Filters and Broker Slide # 6

SharedQueue for Java Pipe

import java.util.ArrayList;
public class SharedQueue
   {
   ArrayList elements = new ArrayList();

   public synchronized void append( Object item )
      {
      elements.add( item);
      notify();
      }

   public synchronized Object get( )
      {
      try
         {
         while ( elements.isEmpty() )
            wait();
         }
      catch (InterruptedException threadIsDone )
         {
         return null;
         }
      return elements.remove( 0);
      }

   public int size()
      {
      return elements.size();
      }
   }


Doc 18, Pipes Filters and Broker Slide # 7

Error handling
Difficult to do

What happens if 1/2 data is processed when one filter has a runtime exception?

How does one inform the other filters?

Can one restart the pipeline to process the next batch of data?


Doc 18, Pipes Filters and Broker Slide # 8

Example

endOfPipeline := $@.

upperCaseFilter :=
      [:input :output |
      | nextCharacter |

      [nextCharacter := input next.
      nextCharacter ~= endOfPipeline]
            whileTrue: [output nextPut: nextCharacter asUppercase]].

noBeesFilter :=
      [:input :output |
      | nextCharacter |

      [nextCharacter := input next.
      nextCharacter ~= endOfPipeline]
            whileTrue:
               [nextCharacter ~= $B
                  ifTrue: [output nextPut: nextCharacter]]].

display :=
      [:input |
      | nextCharacter |

      [nextCharacter := input next.
      nextCharacter ~= endOfPipeline]
            whileTrue: [Transcript nextPut: nextCharacter; flush]].


Doc 18, Pipes Filters and Broker Slide # 9


dataStream :='Hi Mom. How is Bob@' readStream.
pipeA := SharedQueue new.
pipeB := SharedQueue new.

[upperCaseFilter value: dataStream value: pipeA] fork.
[noBeesFilter value: pipeA value: pipeB] fork.
[display value: pipeB ] fork.
Doc 18, Pipes Filters and Broker Slide # 10

The Broker Pattern


Doc 18, Pipes Filters and Broker Slide # 11

A broker

Handles the transmission of requests from clients to servers

Handles the transmission of responses from servers to clients

Must have some means to identify and locate server

If server is hosted by different broker, forwards the request to other broker

If server is inactive, active the server

Provides APIs for registering servers and invoking server methods

Bridge

Optional components used for hiding implementation details when two brokers interoperate


Doc 18, Pipes Filters and Broker Slide # 12

Dynamics

Registering Server


Doc 18, Pipes Filters and Broker Slide # 13

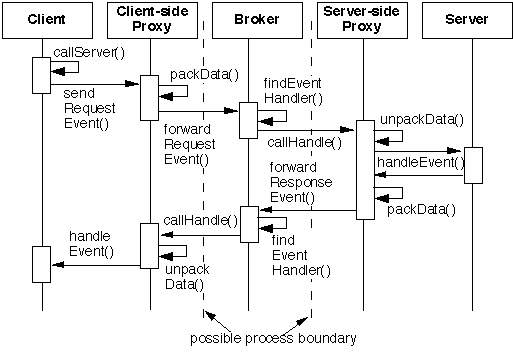

Client Server Interaction


Doc 18, Pipes Filters and Broker Slide # 14

Variants

Direct Communication Broker System

Broker gives the client a communication channel to the server

Client and server interact directly

Many CORBA implementation use this variant

Message Passing Broker System

Clients and servers pass messages rather than services (methods)

Trader System

Clients request a service, not a server

Broker forwards the request to a server that provides the service

Adapter Broker System

Hide the interface of the broker component to the servers using an additional layer

The adapter layer is responsible for registering servers and interacting with servers

For example if all server objects are on the same machine as application a special adapter could link the objects to the application directly


Doc 18, Pipes Filters and Broker Slide # 15

Callback Broker System

Eliminate the difference between clients and servers

When an event is registered with a broker, it calls the component that is registered to handle the event


Doc 18, Pipes Filters and Broker Slide # 16

Known Uses

CORBA

IBM's SOM/DSOM

Mircosoft OLE 2.x

RMI


Doc 18, Pipes Filters and Broker Slide # 17

Consequences

Benefits
Location Transparency
Clients (servers) do not care where servers (clients)are located

Changeability and extensibility of components
Changes to server implementations are transparent to clients if they don't change interfaces

Changes to internal broker implementation does not affect clients and servers

One can change communication mechanisms without changing client and server code

Portability of Broker System
Porting client & servers to a new system usually just requires recompiling the code


Doc 18, Pipes Filters and Broker Slide # 18

Benefits - Continued

Interoperability between different Broker System
Different broker systems may interoperate if they have a common protocol for the exchange of messages

DCOM and CORBA interoperate

DCOM and RMI interoperate

RMI and CORBA interoperate

Reusability
In building new clients you can reuse existing services


Doc 18, Pipes Filters and Broker Slide # 19

Liabilities
Restricted Efficiency

Lower fault tolerance compared to non-distributed software

Benefits and Liabilities
Testing and Debugging

A client application using tested services is easier to test than creating the software from scratch

Debugging a Broker system can be difficult


Doc 18, Pipes Filters and Broker Slide # 20

Some RMI

A First Program - Hello World
Modified from "Getting Started Using RMI"

The Remote Interface

public interface Hello extends java.rmi.Remote
   {
   String sayHello() throws java.rmi.RemoteException;
   }


Doc 18, Pipes Filters and Broker Slide # 21

The Server Implementation

// Required for Remote Implementation
import java.rmi.*;
import java.rmi.server.UnicastRemoteObject;
// Used in method getUnixHostName
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
public class HelloServer
      extends UnicastRemoteObject
      implements Hello
   {
   public HelloServer() throws RemoteException
      {
      }
   // The actual remote sayHello
   public String sayHello() throws RemoteException
      {
      return  "Hello World from " + getUnixHostName();
      }
Doc 18, Pipes Filters and Broker Slide # 22

// Works only on UNIX machines

   protected String getUnixHostName()
      {
      try
         {
         Process  hostName;
         BufferedReader  answer;
         hostName = Runtime.getRuntime().exec( "hostname" );
         answer = new BufferedReader(
                        new InputStreamReader(
                           hostName.getInputStream()) );
         hostName.waitFor();
         return answer.readLine().trim();
         }
      catch (Exception noName)
         {
         return "Nameless";
         }
      }

Doc 18, Pipes Filters and Broker Slide # 23

// Main that registers with Server with Registry

   public static void main(String args[])
      {
      // Create and install a security manager
      System.setSecurityManager(new RMISecurityManager());
      try
         {
         HelloServer serverObject = new HelloServer ();
         Naming.rebind("//roswell.sdsu.edu/HelloServer",
                           serverObject );
         System.out.println("HelloServer bound in registry");
         }
      catch (Exception error)
         {
         System.out.println("HelloServer err: ");
         error.printStackTrace();
         }
      }
   }
Doc 18, Pipes Filters and Broker Slide # 24

The Client Code

import java.rmi.*;
import java.net.MalformedURLException;
public class HelloClient
   {
   public static void main(String args[])
      {
      try {
         Hello remote = (Hello) Naming.lookup(
                              "//roswell.sdsu.edu/HelloServer");
         String message = remote.sayHello();
         System.out.println( message );
         }
      catch ( Exception error)
         {
         error.printStackTrace();
         }
      }
   }

Note the multiple catches are to illustrate which exceptions are thrown


Doc 18, Pipes Filters and Broker Slide # 25

Running The Example

Server Side

Step 1 . Compile the source code

Server side needs interface Hello and class HelloServer

javac Hello.java HelloServer.java

Step 2 . Generate Stubs and Skeletons (to be explained later)

The rmi compiler generates the stubs and skeletons

rmic HelloServer

This produces the files:

HelloServer_Skel.class
HelloServer_Stub.class

The Stub is used by the client and server
The Skel is used by the server

The normal command is:

rmic fullClassname


Doc 18, Pipes Filters and Broker Slide # 26

Step 3 . Insure that the RMI Registry is running

For the default port number

rmiregistry &

For a specific port number

rmiregistry portNumber &

On a UNIX machine the rmiregistry will run in the background and will continue to run after you log out

This means you manually kill the rmiregistry

Step 4. Register the server object with the rmiregistry by running HelloServer.main()

java HelloServer &


Doc 18, Pipes Filters and Broker Slide # 27

Client Side

The client can be run on the same machine or a different machine than the server

Step 1 . Compile the source code

Client side needs interface Hello and class HelloClient

javac Hello.java HelloClient.java

Step 2. Make the HelloServer_Stub.class is available

Either copy the file from the server machine
or
Compile HelloServer.java on client machine and rum rmic

Step 3. Run the client code

java HelloClient


Doc 18, Pipes Filters and Broker Slide # 28

Proxies

How do HelloClient and HelloSever communicate?

Client talks to a Stub that relays the request to the server over a network

Server responds via a skeleton that relays the response to the Client


Doc 18, Pipes Filters and Broker Slide # 29
