	CS 635: Advanced Object-Oriented Design & Programming

Spring Semester, 1998
Creational Patterns -Factory Method, Prototype, Abstract Factory
To Lecture Notes Index
© 1998, All Rights Reserved, SDSU & Roger Whitney
San Diego State University -- This page last updated 21-Apr-98

Contents of Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory

Reference	slide # 1

Factory Method	slide # 2
......Maze Class Version 1	slide # 3
...Implementation	slide # 7
......Parameterized Factory Methods	slide # 8
......C++ Templates to Avoid Subclassing	slide # 8
......Java forName and Factory methods	slide # 9
......Clients Can Use Factory Methods	slide # 10

Prototype	slide # 12
...Intent	slide # 12
...Applicability	slide # 12
...Implementation/Sample Code	slide # 13
...Cloning Issues	slide # 14
......How to in C++ - Copy Constructors	slide # 14
......How to in Java - Object clone()	slide # 15
......Shallow Copy Verse Deep Copy	slide # 16
...Example of Prototype	slide # 18
...Consequences	slide # 27
...Implementation Issues	slide # 27

Abstract Factory	slide # 28
...How Do Factories create Widgets	slide # 32
......Method 2) Their Factory Method	slide # 33
......Method 3) Prototype	slide # 35
...Applicability	slide # 36
...Consequences	slide # 36

Reference
Design Patterns: Elements of Reusable Object-Oriented Software, Gamma, Helm, Johnson, Vlissides, Addison-Wesley, 1995, chapter 3

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 2

Factory Method

Example - Maze Game

Classes for Mazes

Now a maze game has to make a maze, so we might have something like:

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 3

Maze Class Version 1

class MazeGame
     {

     public Maze createMaze()
          {
          Maze aMaze = new Maze();

          Room r1 = new Room( 1 );
          Room r2 = new Room( 2 );
          Door theDoor = new Door( r1, r2);

          aMaze.addRoom( r1 );
          aMaze.addRoom( r2 );

          r1.setSide( North, new Wall() );
          r1.setSide( East, theDoor );
          r1.setSide( South, new Wall() );
          r1.setSide( West, new Wall() );

          r2.setSide( North, new Wall() );
          r2.setSide( East, new Wall() );
          r2.setSide( South, new Wall() );
          r2.setSide( West, theDoor );

          return aMaze;
          }
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 4

How do we make Other Mazes?
Idea 1 - Subclass MazeGame, override createMaze

class BombedMazeGame extends MazeGame
     {

     public Maze createMaze()
          {
          Maze aMaze = new Maze();

          Room r1 = new RoomWithABomb( 1 );
          Room r2 = new RoomWithABomb( 2 );
          Door theDoor = new Door( r1, r2);

          aMaze.addRoom( r1 );
          aMaze.addRoom( r2 );

          r1.setSide( North, new BombedWall() );
          r1.setSide( East, theDoor );
          r1.setSide( South, new BombedWall() );
          r1.setSide( West, new BombedWall() );

etc.

Note the amount of cut and paste!

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 5

How do we make Other Mazes?
Idea 2 - Factory Method

class MazeGame
     {

     public Maze makeMaze() { return new Maze(); }
     public Room makeRoom(int n ) { return new Room( n ); }
     public Wall makeWall() { return new Wall(); }
     public Door makeDoor() { return new Door(); }

     public Maze CreateMaze()
          {
          Maze aMaze = makeMaze();

          Room r1 = makeRoom( 1 );
          Room r2 = makeRoom( 2 );
          Door theDoor = makeDoor( r1, r2);

          aMaze.addRoom( r1 );
          aMaze.addRoom( r2 );

          r1.setSide( North, makeWall() );
          r1.setSide( East, theDoor );
          r1.setSide( South, makeWall() );
          r1.setSide( West, makeWall() );

          r2.setSide( North, makeWall() );
          r2.setSide( East, makeWall() );
          r2.setSide( South, makeWall() );
          r2.setSide( West, theDoor );

          return aMaze;
          }
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 6

Now subclass MazeGame override make methods

CreateMaze method stays the same

class BombedMazeGame extends MazeGame
     {

     public Room makeRoom(int n )
          {
          return new RoomWithABomb( n );
          }

     public Wall makeWall()
          {
          return new BombedWall();
          }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 7

Implementation

Top level Factory method is in an abstract class

abstract class MazeGame
     {

     public Maze makeMaze();
     public Room makeRoom(int n );
     public Wall makeWall();
     public Door makeDoor();

class MazeGame
     {

     public:
          virtual Maze* makeMaze() = 0;
          virtual Room* makeRoom(int n ) = 0;
          virtual Wall* makeWall() = 0;
          virtual Door* makeDoor() = 0;

Top level Factory method is in a concrete class

"Create objects in a separate operation so that subclasses can override the way they're created"

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 8

Parameterized Factory Methods

class Hershey
     {

     public Candy makeChocolateStuff( CandyType id )
          {
          if ( id == MarsBars ) return new MarsBars();
          if ( id == M&Ms ) return new M&Ms();
          if ( id == SpecialRich ) return new SpecialRich();

          return new PureChocolate();
          }

C++ Templates to Avoid Subclassing

template <class ChocolateType>
class Hershey
     {
     public:
          virtual Candy* makeChocolateStuff( );
     }

template <class ChocolateType>
Candy* Hershey<ChocolateType>::makeChocolateStuff( )
     {
     return new ChocolateType;
     }

Hershey<SpecialRich> theBest;

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 9

Java forName and Factory methods

class Hershey
     {

     private String chocolateType;

     public Hershey( String chocolate )
          {
          chocolateType = chocolate;
          }

     public Candy makeChocolateStuff( )
          {
          Class candyClass =  Class.forName( chocolateType );
          return (Candy) candyClass.newInstance();
          }

Hershey theBest = new Heshsey( "SpecialRich" );

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 10

Clients Can Use Factory Methods

class CandyStore
     {
     Hershey supplier;
     public restock()
          {
          blah

          if ( chocolateStock.amount() < 10 )
               {
               chocolateStock.add(
                    supplier.makeChocolateStuff() );
               }

     blah

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 11

How do we make Other Mazes?
Idea 3 - Factory Method in Client or is that Prototype?

class Room extends MapSite
     {
     public Room makeRoom()  { return new Room(); }
     etc,
     }

class RoomWithBomb extends Room
     {
     public Room makeRoom()  { return new RoomWithBomb(); }
     etc,
     }

etc.

class MazeGame
     {
     public Room roomMaker;
     etc.

     public MazeGame( Room rfactory  )
          {
          roomMaker = rfactory;
          }

     public Maze CreateMaze()
          {
          Maze aMaze = new Maze();

          Room r1 = roomMaker.makeRoom( 1 );
          etc.

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 12

Prototype
Intent

Specify the kinds of objects to create using a prototypical instance, and create new objects by copying this prototype

Applicability

Use the Prototype pattern when a system should be independent of how its products are created, composed, and represented; and

when the classes to instantiate are specified at run-time; or
to avoid building a class hierarchy of factories that parallels the class hierarchy of products; or
when instances of a class can have one of only a few different combinations of state. It may be easier to have the proper number of prototypes and clone them rather than instantiating the class manually each time

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 13

Implementation/Sample Code

Simple Example

class Prototype
     {
     public Prototype clone()
          {
          code to make a copy of current Prototype object
          return clone;
          }

          // add what ever else you want the class to do
     }


class Protoplasm extends  Prototype
     {
     public Prototype clone()
          {
          code to make a copy of current Protoplasm object
          return clone;
          }

     // add more other stuff
     }

ClientCodeMethod( Prototype example )
     {
     Prototype myCopy = example.clone();

     // do some work using myCopy
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 14

Cloning Issues

How to in C++ - Copy Constructors

class Door
     {
     public:
          Door();
          Door( const Door&);

          virtual Door* clone() const;

          virtual void Initialize( Room*, Room* );
          // stuff not shown
     private:
          Room* room1;
          Room* room2;
     }

Door::Door ( const Door& other ) //Copy constructor
     {
     room1 = other.room1;
     room2 = other.room2;
     }

Door* Door::clone()  const
     {
     return new Door( *this );
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 15

How to in Java - Object clone()

protected Object clone() throws CloneNotSupportedException

Creates a clone of the object. A new instance is allocated and a bitwise clone of the current object is place in the new object.

Returns:

a clone of this Object.

Throws: OutOfMemoryError

If there is not enough memory.

Throws: CloneNotSupportedException

Object explicitly does not want to be cloned, or it does not support the Cloneable interface.

class Door implements Cloneable
     {
     public void Initialize( Room a, Room b)
          { room1 = a; room2 = b; }

     public Object clone() throws
                          CloneNotSupportedException
          {
          return super.clone();
          }

     Room room1;
     Room room2;
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 16

Shallow Copy Verse Deep Copy

Original Objects

door pic

Shallow Copy

shallowCopy

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 17

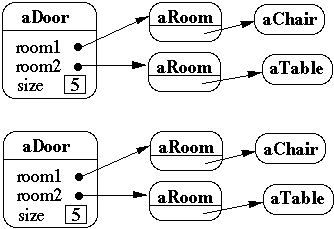

Shallow Copy Verse Deep Copy

Original Objects

door pic

Deep Copy

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 18

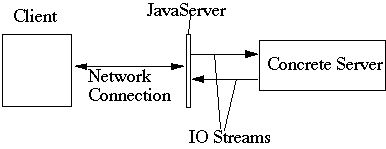

Example of Prototype

JavaServer handles the network connection.

Algorithm:

Wait for client to connect

Open connection

Create IO streams to client

Create Server Engine to handle request

Let engine handle the request

Variations:

JavaServer will want to multiple copies of server engine to handle more than one client at a time

Would like to write JavaServer just once and use it for all possible different server engines

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 19

JavaSever With Factory Method
For a DateServer

class JavaServer
     {
     ServerSocket acceptor;

     public JavaServer( int portNumber )
          {
          acceptor = new ServerSocket( portNumber );
          }

     public void run()
          {
          while (true)
               {
               Socket client = acceptor.accept();
               InputStream cin = client.getInputStream();
               OutputStream cout = client.getOutputStream();
               processClientRequest( cin, cout );
               }
          }

     private void processClientRequest( InputStream cin,
                                         OutputStream cout )
          {
          DateServer  handler = new DateServer( cin, cout);
          handler.processClientRequest();
          }
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 20
JavaServer with Template Method

class AirlineReservationJavaServer extends JavaServer
     {
     public AirlineReservationServer( int portNumber )
          {
          super( portNumber );
          }


     private void processClientRequest( InputStream cin,
                                         OutputStream cout )

          AirlineReservation  handler;
          handler = new AirlineReservation( cin, cout );
          handler.processClientRequest();
          }
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 21

Design Principle 1

Program to an interface, not an implementation

Use abstract classes (and/or interfaces in Java) to define common interfaces for a set of classes

Declare variables to be instances of the abstract class not instances of particular classes

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 22

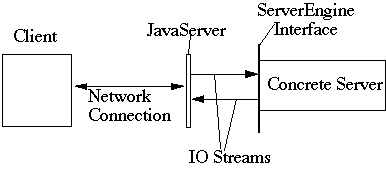

The Interface

interface ServerEngine
     {
     public void processClientRequest(InputStream in,
                                        OutputStream out);
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 23

JavaServer with Factory Method

abstract class JavaServer
     {
     ServerSocket acceptor;

     public JavaServer( int portNumber )
          {
          acceptor = new ServerSocket( portNumber );
          }

     public void run()
          {
          while (true)
               {
               Socket client = acceptor.accept();
               InputStream cin = client.getInputStream();
               OutputStream cout = client.getOutputStream();
               ServerEngine requestHandler =
                    makeServerEngine();

               requestHandler.processClientRequest( cin, cout );
               }
          }

     abstract protected ServerEngine makeServerEngine();
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 24


class AirlineReservationJavaServer extends JavaServer
     {
     public AirlineReservationServer( int portNumber )
          {
          super( portNumber );
          }

     protected ServerEngine makeServerEngine()
          {
          return new AirlineReservation( );
          }
     }

class AirlineReservation implements ServerEngine
     {
     public void processClientRequest(InputStream in,
                                        OutputStream out)
          {
          blah
          }
     etc.
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 25

JavaSever With Interface and Prototype
For Any Server

interface ServerEngine
     {
     public ServerEngine clone( InputStream in,
                                        OutputStream out );

     public void processClientRequest();
     }

class JavaServer
     {
     ServerSocket acceptor;
     ServerEngine serverPrototype;

     public JavaServer( int portNumber, ServerEngine aCopy)
          {
          acceptor = new ServerSocket( portNumber );
          serverPrototype = aCopy;
          }

     public void run() {
          while (true)
               {
               Socket client = acceptor.accept();
               InputStream cin = client.getInputStream();
               OutputStream cout = client.getOutputStream();
               ServerEngine requestHandler =
                    serverPrototype.clone( cin, cout);

               requestHandler.processClientRequest( cin, cout );
               }
          }
     }
Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 26

Driver Program

class DriverProgram
     {
     public  static  void  main( String  args[] )
          {
          ServerEngine aPrototype = new DateServer();
          JavaServer  networkListener;
          networkListener = new JavaServer( 6666,  aPrototype );
          networkListener.run();
          }
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 27

Consequences

Adding and removing products at run-time
Specifying new objects by varying values
Specifying new objects by varying structure
Reducing subclassing (from factory method)
Configuring an application with classes dynamically

Implementation Issues

Using a prototype manager
Implementing the Clone operation
Initializing clones

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 28

Abstract Factory
Example - Write a Cross Platform Window Toolkit

Write a toolkit to allow applications with GUI interfaces to run on multiple platforms (Mac, PC, OS/2, Unix motif ) using the look and feel of each platform

We will look at widgets: Windows, Menu's and Buttons

Create an interface( or abstract class) for each widget and an concrete class for each platform:

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 29

This allows the application to write to the widget interface

public void installDisneyMenu()
     {
     Menu disney = create a menu somehow
     disney.addItem( "Disney World" );
     disney.addItem( "Donald Duck" );
     disney.addItem( "Mickey Mouse" );
     disney.addGrayBar( );
     disney.addItem( "Minnie Mouse" );
     disney.addItem( "Pluto" );
     etc.
     }

How to create the widget?

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 30

Use Abstract Factory

abstract class WidgetFactory
     {
     public Window createWindow();
     public Menu createMenu();
     public Button createButton();
     }

class MacWidgetFactory extends WidgetFactory
     {
     public Window createWindow()
          { code to create a mac window }

     public Menu createMenu()
          { code to create a mac Menu }

     public Button createButton()
          { code to create a mac button }
     }

class Win95WidgetFactory extends WidgetFactory
     {
     public Window createWindow()
          { code to create a Win95 window }

     public Menu createMenu()
          { code to create a Win95 Menu }

     public Button createButton()
          { code to create a Win95 button }
     }

Etc.

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 31

Now to get code that works for all platforms we get:

public void installDisneyMenu(WidgetFactory myFactory)
     {
     Menu disney = myFactory.createMenu();
     disney.addItem( "Disney World" );
     disney.addItem( "Donald Duck" );
     disney.addItem( "Mickey Mouse" );
     disney.addGrayBar( );
     disney.addItem( "Minnie Mouse" );
     disney.addItem( "Pluto" );
     etc.
     }

We just need to make sure that the application for each platform creates the proper factory

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 32

How Do Factories create Widgets?

Method 1) My Factory Method

abstract class WidgetFactory
     {
     public Window createWindow();
     public Menu createMenu();
     public Button createButton();
     }

class MacWidgetFactory extends WidgetFactory
     {
     public Window createWindow()
          { return new MacWidow() }

     public Menu createMenu()
          { return new MacMenu() }

     public Button createButton()
          { return new MacButton()  }
     }

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 33

How Do Factories create Widgets?

Method 2) Their Factory Method

abstract class WidgetFactory
     {
     private Window windowFactory;
     private Menu menuFactory;
     private Button buttonFactory;

     public Window createWindow()
          { return windowFactory.createWindow() }

     public Menu createMenu();
          { return menuFactory.createWindow() }

     public Button createButton()
          { return buttonFactory.createWindow() }

     }

class MacWidgetFactory extends WidgetFactory
     {
     public MacWidgetFactory()
          {
          windowFactory = new MacWindow();
          menuFactory = new MacMenu();
          buttonFactory = new MacButton();
          }
     }

class MacWindow extends Window
     {
     public Window createWindow() { blah }
     etc.

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 34

How Do Factories create Widgets?
Method 2) Their Factory Method
When does this make Sense?

There might be more than one way to create a widget

abstract class WidgetFactory
     {
     private Window windowFactory;
     private Menu menuFactory;
     private Button buttonFactory;

     public Window createWindow()
          { return windowFactory.createWindow() }

     public Window createWindow( Rectangle size)
          { return windowFactory.createWindow( size ) }

     public Window createWindow( Rectangle size, String title)
          { return windowFactory.createWindow( size, title) }

     public Window createFancyWindow()
          { return windowFactory.createFancyWindow() }

     public Window createPlainWindow()
          { return windowFactory.createPlainWindow() }

Using factory method allows abstract class to do all the different ways to create a window.

Subclasses just provide the objects windowFactory, menuFactory, buttonFactory, etc.

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 35

How Do Factories create Widgets?

Method 3) Prototype

class WidgetFactory
     {
     private Window windowPrototype;
     private Menu menuPrototype;
     private Button buttonPrototype;

     public WidgetFactory( Window windowPrototype,
                              Menu menuPrototype,
                              Button buttonPrototype)
          {
          this.windowPrototype = windowPrototype;
          this.menuPrototype = menuPrototype;
          this.buttonPrototype = buttonPrototype;
          }

     public Window createWindow()
          { return windowFactory.createWindow() }

     public Window createWindow( Rectangle size)
          { return windowFactory.createWindow( size ) }

     public Window createWindow( Rectangle size, String title)
          { return windowFactory.createWindow( size, title) }

     public Window createFancyWindow()
          { return windowFactory.createFancyWindow() }

etc.

There is no need for subclasses of WidgetFactory.

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 36

Applicability

A system should be independent of how its products are created, composed and represented
A system should be configured with one of multiple families of products
A family of related product objects is designed to be used together, and you need to enforce this constraint
You want to provide a class library of products, and you want to reveal just their interfaces, not their implementation

Consequences

It isolates concrete classes
It makes exchanging product families easy
It promotes consistency among products
Supporting new kinds of products is difficult

Implementation

Factories as singletons
Defining extensible factories

Doc 12, Creational Patterns -Factory Method, Prototype, Abstract Factory Slide # 37

Problem: Cheating Application Code

public void installDisneyMenu(WidgetFactory myFactory)
     {
     // We ship next week, I can't get the stupid generic Menu to
     // do the fancy Mac menu stuff
     // Windows version won't ship for 6 months
     // Will fix this later

     MacMenu disney = (MacMenu) myFactory.createMenu();
     disney.addItem( "Disney World" );
     disney.addItem( "Donald Duck" );
     disney.addItem( "Mickey Mouse" );
     disney.addMacGrayBar( );
     disney.addItem( "Minnie Mouse" );
     disney.addItem( "Pluto" );
     etc.
     }

visitors since 03-Mar-98
