Visitor

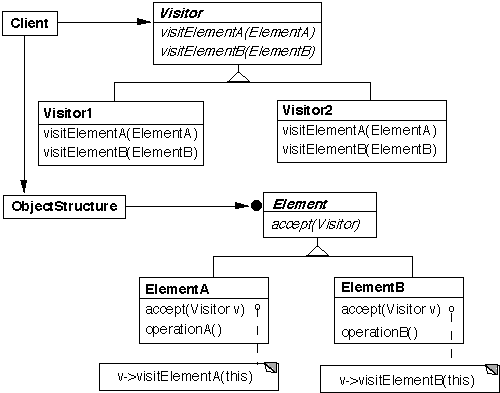

Structure

Doc 27, Visitor Slide # 3

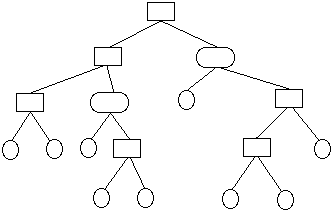

Example - Tree Structure

What about preorder visit, postorder visit?
What about an HTML print?
What about printing a 2D representation?
What if this was an expression tree - evaluation?
What if this was a binary search tree - adding, deleting
What about balancing the binary search tree -

AVL

Red-Black

Doc 27, Visitor Slide # 4

Solution 1

Build all the operations into the tree structure

This works in many situations

If you need to add a lot of operations the classes can become cluttered

Solution 2

Put operations into separate object (pseudo-visitor)
Iterate through the structure
Pass each element in the structure to operations object
Operation object processes each element

This helps avoid the clutter of the classes used in the structure

This works in situations where solution 1 does not

Iteration may be difficult to do, it might be easier to let the structure to the traversal

When the structure contains objects of different types using just iteration can be a problem

The iterator has to be able to return different possible unrelated types, which may not be possible (C++) or difficult

Operation objects can be passed elements it is not designed to handle

Doc 27, Visitor Slide # 5

Solution 3

Put operations into separate object
Pass the operations object (visitor) to each element in the structure
The element then calls the proper method in visitor for its type
Operation object processes each element properly

This is more complex than solutions 1 & 2

The traversal can be done by the structure, an iterator, or the visitor

Usually the traversal is done by the structure

Having the traversal in the visitor can lead to duplicated code

The visitor is told what type it is acting on, so using the wrong visitor will be a compile error

Doc 27, Visitor Slide # 6

When to Use Visitor

When an object structure contains many classes of objects with differing interfaces, and you want to perform operations on these objects that depend on their concrete classes
When many distinct and unrelated operations need to be preformed on objects in an object structure and you want to avoid cluttering the classes with these operations
When the classes defining the structure rarely change, but you often want to define new operations over the structure

Consequences

Visitors makes adding new operations easier

If the structure involves many different classes then adding a new operation to the structure requires changing all those classes

Visitors gathers related operations, separates unrelated ones

A print visitor could have all the different ways to print

Doc 27, Visitor Slide # 7

Consequences Continued

Adding new ConcreteElement classes is hard

To add a new ConcreteElement you need to change all existing visitors

Visiting across class hierarchies

Text claims iterators can not iterate through structure containing unrelated classes

However, the visitor assumes that each element in the structure contains a visit method, which implies at least a common visit interface for all elements

Accumulating state

A visitor can accumulate information as it traverses the structure

Breaking encapsulation

The visitor may force you to provide public operations in the elements that you would not otherwise make public

C++ friends are useful here

Doc 27, Visitor Slide # 8

Variations

Use Function Overloading

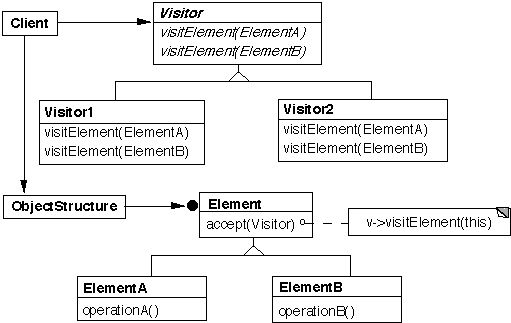

Overloading allows the accept method to be implemented once in the Element class

Doc 27, Visitor Slide # 9

ExtrinsicVisitor

The Visitor takes the responsibility of making sure a visitor can visit a particular concrete element

Each Visitor knows which types of concrete classes it can visit

The canVisit method of each visitor returns true is that visitor can visit that concrete type

New visitors can be created without changing the Element classes

New Element classes can be added without having to change old visitors

Doc 27, Visitor Slide # 10

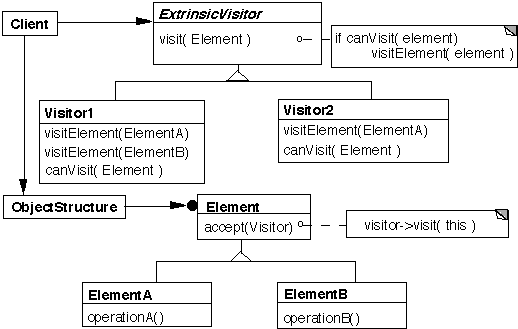

The above is slightly modified from the original ExtrinsicVisitor pattern

In the original

Element does not have an accept method

The visit method of ExtrinsicVisitor does not call canVisit

ObjectStructure calls canVisit to determine if an element can be visited, then calls visit

The visitElement methods are not over loaded
