	CS 580 Client-Server Programming Fall Semester, 2002 Testing
	Previous Lecture Notes Index Next © 2002, All Rights Reserved, SDSU & Roger Whitney San Diego State University -- This page last updated 29-Sep-02

Contents of Doc 11, Testing

References
JUnit Cookbook http://junit.sourceforge.net/doc/cookbook/cookbook.htm

JUnit Test Infected: Programmers Love Writing Tests http://junit.sourceforge.net/doc/testinfected/testing.htm

JUnit Javadoc: http://www.junit.org/junit/javadoc/3.8/index.htm

Brian Marick’s Testing Web Site: http://www.testing.com/

Testing for Programmers, Brian Marick, Available at: http://www.testing.com/writings.html


Doc 11, Testing Slide # 2

Reading Assignment
Test Infected - Programmers Love Writing Tests, http://junit.sourceforge.net/doc/testinfected/testing.htm

JUnit FAQ, http://junit.sourceforge.net/doc/faq/faq.htm

Programming with Assertions, http://java.sun.com/j2se/1.4/docs/guide/lang/assert.html

Lecture Source Code
Java – CVS module testExamples

Smalltalk – Store package testExamples


Doc 11, Testing Slide # 3

Testing

Johnson's Law

If it is not tested it does not work

Types of tests

Unit Tests

Tests individual code segments

Functional Tests

Test functionality of an application


Doc 11, Testing Slide # 4

Why Unit Testing

If it is not tested it does not work

The more time between coding and testing

More effort is needed to write tests More effort is needed to find bugs Fewer bugs are found Time is wasted working with buggy code Development time increases Quality decreases

Without unit tests

Code integration is a nightmare Changing code is a nightmare

Doc 11, Testing Slide # 5

Why Automated Tests?
What wrong with:

Using print statements
Writing driver program in main
Writing small sample programs to run code
Running program and testing it be using it


Doc 11, Testing Slide # 6

Repeatability & Scalability

Need testing methods that:

Work with N programmers working for K months (years)

Help when modify code 6 months after it was written

Check impact of code changes in rest of system

Practices that work in a school project may not be usable in industry

Standard industry practices may seem overkill in a school project

Work on building good habits and skills


Doc 11, Testing Slide # 7

We have a QA Team, so why should I write tests?

How long does it take QA to test your code?

How much time does your team spend working around bugs before QA tests?

How easy is it to find & correct the errors after QA finds them?

Most programmers have an informal testing process

With a little more work you can develop a useful test suite


Doc 11, Testing Slide # 8

When to Write Unit Tests

First write the tests

Then write the code to be tested

Writing tests first saves time

Makes you clear of the interface & functionality of the code

Removes temptation to skip tests


Doc 11, Testing Slide # 9

SUnit & JUnit

Free frameworks for Unit testing

SUnit originally written by Kent Beck 1994

Built into VisualWorks 7.0

JUnit written by Kent Beck & Erich Gamma

Available at: http://www.junit.org/

Already installed in JDK 1.2 on rohan and moria

Ports are available in

.NET	Ada	AppleScript	C
C#	C++	Curl	Delphi
Eiffel	Eiffel	Flash	Forte 4GL
Gemstone/S	Haskell	HTML	Jade
LISP	Objective-C	Oracle	Palm
Perl	Php	PowerBuilder	Python
Ruby	Scheme	Smalltalk	Visual Basic
XML	XSLT

See http://www.xprogramming.com/software.htm to download ports


Doc 11, Testing Slide # 10

How to Use SUnit

1. Make test class a subclass of TestCase

2. Make test methods


The framework treats methods starting with 'test' as test methods

3. Run the tests

You can run the test using TestRunner

      TestRunner open


Use Browser SUnit Extensions
Load parcel/RBSUnitExtensions.pcl to run the tests from the browser
Doc 11, Testing Slide # 11

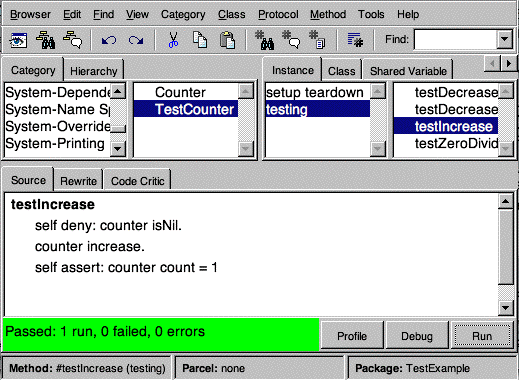

Broswer SUnit Extensions


Doc 11, Testing Slide # 12

Sample TestClass

Smalltalk.CS535 defineClass: #TestCounter
   superclass: #{XProgramming.SUnit.TestCase}
   indexedType: #none
   private: false
   instanceVariableNames: 'counter '
   classInstanceVariableNames: ''
   imports: ''
   category: 'Course-Examples'

CS535.TestCounter methodsFor: 'testing'

setUp
   counter := Counter new.

tearDown
   counter := nil.

testDecrease
   counter decrease.
   self assert: counter count = -1.

testDecreaseWithShould
   "Just an example to show should: syntax"
   counter decrease.
   self should: [counter count = -1].

testIncrease
   self deny: counter isNil.
   counter increase.
   self assert: counter count = 1.

testZeroDivide
   "Just an example to show should:raise: syntax"
   self
      should: [1/0]
      raise: ZeroDivide.

   self
      shouldnt: [1/2]
      raise: ZeroDivide


Doc 11, Testing Slide # 13

TestCase methods of interest

Methods to assert conditions:

   assert: aBooleanExpression
   deny: aBooleanExpression
   should: [aBooleanExpression]
   should: [aBooleanExpression] raise: AnExceptionClass
   shouldnt: [aBooleanExpression]
   shouldnt: [aBooleanExpression] raise: AnExceptionClass
   signalFailure: aString

setUp

Called before running each test method in the class.
Used to: Open files Open database connections Create objects needed for test methods

tearDown

Called after running each test method in the class.

Used to: Close files Close database connections Nil out references to objects


Doc 11, Testing Slide # 14

Using JUnit

Example
Goal: Implement a Stack containing integers.

Tests:

Subclass junit.framework.TestCase
Methods starting with 'test" are run by TestRunner

First tests for the constructors:

public class  TestStack extends TestCase {
   //required constructor
   public TestStack(String name) {
      super(name);
   }

   public void testDefaultConstructor() {
      Stack test = new Stack();
      assertTrue("Default constructor", test.isEmpty() );
   }

   public void testSizeConstructor() {
      Stack test = new Stack(5);
      assertTrue( test.isEmpty() );
   }

}


Doc 11, Testing Slide # 15

First part of the Stack

package example;
public class Stack  {
   int[] elements;
   int topElement = -1;

   public Stack() {
    this(10);
   }
   public Stack(int size) {
      elements = new int[size];
   }

   public boolean isEmpty() {
      return topElement == -1;
   }
}
Doc 11, Testing Slide # 16

Running JUnit

JUnit has three interfaces

Text (junit.textui.*)


Fastest to run

AWT (junit.ui.*)

Swing (junit.swingui.*)


Can reload class files so you can
Run TestRunner once
Recompile program until it passes tests


Doc 11, Testing Slide # 17

Starting Swingui TestRunner
Make sure your classpath includes the code to tested

On Rohan use:

java  junit.swingui.TestRunner

You get a window similar to that on the next page

Enter the full name of the test class

Click on the Run button

If there are errors/failures select one

You will see a stack trace of the error

The “...” button will search for all test classes in your classpath


Doc 11, Testing Slide # 18

Swing version of JUnit TestRunner


Doc 11, Testing Slide # 19

Running the textui TestRunner
Sample Program using main

public class Testing {
   public static void main (String args[]) {
      junit.textui.TestRunner.run( example.TestStack.class);
   }
}

Output

..
Time: 0.067
OK (2 tests)
java has exited with status 0.


Doc 11, Testing Slide # 20

assert Methods

assertTrue()
assertFalse()
assertEquals()
assertNotEquals()
assertSame()
assertNotSame()
assertNull()
assertNotNull()
fail()

For a complete list of the assert methods & arguments see

http://www.junit.org/junit/javadoc/3.8/index.htm/allclasses-frame.html/junit/junit/framework/Assert.html/Assert.html


Doc 11, Testing Slide # 21

JUnit, Java 1.4 & assert
JUnit had a method called assert()

Java 1.4 makes assert a reserved word

JUnit starting 3.7 replaces assert() with assertTrue()

Use JUnit 3.7 or later with JDK 1.4

To use JDK 1.4 asserts:

Compile with option -source 1.4

   java -source 1.4 programFile.java

Run with the option -ea

   java -ea programFile


Doc 11, Testing Slide # 22

Testing the Tests

If can be useful to modify the code to break the tests

package example;
public class Stack  {
   int[] elements;
   int topElement = -1;

   etc.

   public boolean isEmpty() {
      return topElement == 1;
   }
}
Doc 11, Testing Slide # 23

Result of running Textui.TestRunner .F.F
Time: 0.113
There were 2 failures:
1) testDefaultConstructor(example.TestStack)junit.framework.AssertionFailedError: Default constructor
at example.TestStack.testDefaultConstructor(TestStack.java:22)
at Testing.main(Testing.java:14)
2) testSizeConstructor(example.TestStack)junit.framework.AssertionFailedError
at example.TestStack.testSizeConstructor(TestStack.java:27)
at Testing.main(Testing.java:14)

FAILURES!!!
Tests run: 2, Failures: 2, Errors: 0

java has exited with status 0.


Doc 11, Testing Slide # 24

Why Test the Tests?
One company had an automatic build and test cycle that ran at night. The daily build was created and all the tests were run at night. The test results were available first thing in the morning. One night the build process crashed, so the daily build was not made. Hence there was no code to test. Still 70% of the tests passed. If they had tested their tests, they would have discovered immediately that their tests were broken.


Doc 11, Testing Slide # 25

Test Fixtures

Before each test setUp() is run

After each test tearDown() is run

package example;
import junit.framework.TestCase;
public class  StackTest extends TestCase {
   Stack test;

   public StackTest(String name) {
      super(name);
   }

   public void setUp() {
      test = new Stack(5);
      for (int k = 1; k <=5;k++)
         test.push( k);
   }
   public void testPushPop() {
      for (int k = 5; k >= 1; k--)
         assertEquals( "Pop fail on element " + k,  test.pop() , k);
   }
}


Doc 11, Testing Slide # 26

Suites – Multiple Test Classes

Multiple test classes can be run at the same time

Add Queue & TestQueue to Stack classes

package example;
import junit.framework.TestCase;
public class TestQueue extends TestCase{
   public TestQueue ( String name){
      super(name);
   }
   public void testConstructor() {
      Queue test = new Queue();
      assert( test.isEmpty());
   }
}

package example;
import java.util.Vector;
public class  Queue{
   Vector elements = new Vector();
   public boolean isEmpty() {
      return elements.isEmpty();
   }
}


Doc 11, Testing Slide # 27

Using a Suite to Run Multiple Test Classes
Running AllTests in TestRunner runs the test in

StackTest
QueueTest

package example;
import junit.framework.TestSuite;
import junit.textui.TestRunner;
public class AllTests  {
   static public void main(String[] args) {
       TestRunner.run( example.AllTests.suite());;
   }
   static public TestSuite suite() {
         TestSuite suite= new TestSuite();
      Try {
          suite.addTest(new TestSuite(StackTest.class));
          suite.addTest(new TestSuite(QueueTest.class));
       } catch (Exception e){
       }
       return suite;
   }
}


Doc 11, Testing Slide # 28

Using Main

We can use main to run the test via textui.TestRunner

The command:

   java example.AllTests

will run all the tests in StackTest & QueueTest

package example;
import junit.framework.TestSuite;
import junit.textui.TestRunner;
public class AllTests
   {
   static public void main(String[] args)
      {
      TestRunner.run(AllTests.class);
      }

   static public TestSuite suite()
      {
      same as last page
      }
   }
Doc 11, Testing Slide # 29

How to Test Exceptions

At times you may wish to test input to methods that will cause an exception to be thrown

Here is an example of a test that

passes when an exception is thrown
fails when the exception is not thrown

Example is from the JUnit FAQ

public void testIndexOutOfBoundsException() {

    ArrayList list = new ArrayList(10);

    try {

        Object o = list.get(11);

        fail("Should raise an IndexOutOfBoundsException");

    } catch (IndexOutOfBoundsException success) {}
}


Doc 11, Testing Slide # 30

Testing and Hidden Methods/State

Issues:

How does one test hidden methods?

Direct access to an object's state can reduce the time needed to write a test


Doc 11, Testing Slide # 31

Testing Hidden Methods One Position Don't Do it
Pro:

Can not test everything
Clients of an object only care if public interface works correctly
Testing public interface also tests hidden methods
Hidden methods are more likely to change, requiring changes to the tests

The basic idea is to work smarter not harder. One cannot completely test each class, and one does not have infinite time two write tests one should write the most effective tests possible. Tests of the public interface of class will also test hidden methods of the class. Bugs in hidden methods that never affect the public methods are not a problem. Since the most important thing is that the pubic interface works correctly, concentrate your tests on the public interface.

Con:

The closer the test is to the code it tests the easier the test
Bugs in hidden methods can make it hard to debug public methods

My experience is that the more code I write without tests, the more time I spend on finding and correcting bugs. How many times have you spent hours (days?) tracking down a bug that turned out to a simple bug in some simple untested method, which would have been easy to test? The argument that one cannot test everything and must make effective use of ones testing time is correct. Given the differences in programmer skill level, programmer experience, etc. everyone has to work out their own solution to this. The XP solution is to try to test everything that could possible break. Since most students are not used to testing, you have to fight the habit of not testing and testing after you have completely finished coding. Given the current state of affairs in commercial software, the industry has a lot to learn about testing.


Doc 11, Testing Slide # 32

How to Test Hidden Methods Directly?

Method 1: Relax the protection level

In Java one can

Make the method package level access
Place the test class in the same package as the tested code

Pro:

Makes it possible to test the hidden method
Clients outside the package can not access the method

Con:

Clients in the package may then use the method
Requires organizational discipline to avoid using the method

You should comment the method to inform the clients that the method is not to be used


Doc 11, Testing Slide # 33

How to Test Hidden Methods Directly?

Method 2: Use inner classes

import junit.framework.TestCase;
public class Foo {
    private int value;
    private void bar() {
        value = 10;
    }
    public static class FooTest extends TestCase {
        public FooTest(String name) {
            super(name );
        }
        public void testBar() {
            Foo a = new Foo();
            a.bar();
            assert( 10 == a.value );
        }
    }
}

Pro:

Provides access to all methods/fields
Test does not have to be shipped with production code
Test stays with tested class

Con:

Source files are bit harder to read
Must remove all inner $class files from production code
Test not with other test classes


Doc 11, Testing Slide # 34

How to Test Hidden Methods Directly?

Method 3: Use reflection

Pro:

Java reflection provides access to all methods/fields of a class
Does not require any changes to tested class

Con:

Reflection can be slow
Reflection is cumbersome to use
Requires setting permission files

See http://www.eli.sdsu.edu/courses/fall98/cs596/notes/reflection/reflection.html for more information about reflection


Doc 11, Testing Slide # 35

What to Test

Everything that could possibly break

Test values

Inside valid range
Outside valid range
On the boundary between valid/invalid

GUIs are very hard to test

Keep GUI layer very thin
Unit test program behind the GUI, not the GUI


Doc 11, Testing Slide # 36

Common Things that Programs Handle Incorrectly
Adapted with permission from “A Short Catalog of Test Ideas” by Brian Marick, http://www.testing.com/writings.html

Strings
Test using empty String

Collections
Test using:

Empty Collection
Collection with one element
Collection with duplicate elements
Collections with maximum possible size

Numbers
Test using:

Zero
The smallest number
Just below the smallest number
The largest number
Just above the largest number


Doc 11, Testing Slide # 37

Testing Network Code

Writing automated tests for network code can be hard

Make the network code very thin

Write automated tests for the non-network code


Doc 11, Testing Slide # 38

Example – SimpleDateServer
The SimpleDateServer has two methods

One with network code
One for handling the request with no network code

Write tests for processRequestOn:

SimpleDateServer>>run
   | childSocket clientIOStream |
   [childSocket := serverSocket accept.
   clientIOStream := childSocket readAppendStream.
   clientIOStream lineEndTransparent.
   self processRequestOn: clientIOStream.] repeat

SimpleDateServer>>processRequestOn: anReadAppendStream
   | clientRequest |
   clientRequest := anReadAppendStream through: Character cr.
   (clientRequest startsWith: 'date')
      ifTrue:
         [anReadAppendStream
            nextPutAll: Time dateAndTimeNow printString;
            commit].
   anReadAppendStream close


Doc 11, Testing Slide # 39

Issues in Writing test for processRequestOn:
processRequestOn: Input Need to create an ExternalAppendStream for input

Would be easier to test if arguments were:

ReadStream
WriteStream

Server Output
Initial sever was written without thought to parsing output

It will be hard for tests to parse current output

So it will be hard for a client to parse server response

Conclusion:

Change server to make writing tests & client easier


Doc 11, Testing Slide # 40

Modified Server

SimpleDateServer>>run
   | childSocket |

   [childSocket := serverSocket accept.
   self
      processRequest: childSocket readStream lineEndTransparent
      response: childSocket writeStream lineEndTransparent]
         repeat

SimpleDateServer>>processRequest: aReadStream response: aWriteStream
   | clientRequest |
   clientRequest := aReadStream through: Character cr.
   (clientRequest startsWith: 'date')
      ifTrue:
         [aWriteStream
            nextPutAll: Date today printString;
            commit].
   (clientRequest startsWith: 'time')
      ifTrue:
         [aWriteStream
            nextPutAll: Time now printString;
            commit].
   aWriteStream close.


Doc 11, Testing Slide # 41

Some Tests
TestSimpleDateServer is subclass of TestCase

TestSimpleDateServer>>testDate
   | command response server serverDate serverDateString |
   command := 'date \' withCRs readStream.
   response := WriteStream on: String new.
   server := SimpleDateServer new.
   server processRequest: command response: response.
   serverDateString := response contents.
   serverDate :=Date readFrom: serverDateString readStream.
   self assert: serverDate = Date today.

TestSimpleDateServer>>testTime
   | command response server serverTimeString serverTime |
   command := 'time \' withCRs readStream.
   response := WriteStream on: String new.
   server := SimpleDateServer new.
   server processRequest: command response: response.
   serverTimeString := response contents.
   serverTime :=Time readFrom: serverTimeString readStream.
   self assert: (Time now asSeconds - serverTime asSeconds) < 2.

TestSimpleDateServer>>testBadInput
   | command response server |
   command := 'fooBar \' withCRs readStream.
   response := WriteStream on: String new.
   server := SimpleDateServer new.
   server processRequest: command response: response.
   self assert: response contents trimBlanks isEmpty
Doc 11, Testing Slide # 42

Lessons
Keep the network layer thin

Server design may need to be modified to make it testable

See
Test networked code the easy way, Nelson Minar
http://www.javaworld.com/javaworld/jw-07-2002/jw-0719-networkunittest.html

for another example

Copyright ©, All rights reserved.
2002 SDSU & Roger Whitney, 5500 Campanile Drive, San Diego, CA 92182-7700 USA.
OpenContent license defines the copyright on this document.

Previous visitors since 29-Sep-02 Next
