CS 596 OODP
XForms - Corrected

1. References
2. Misc.

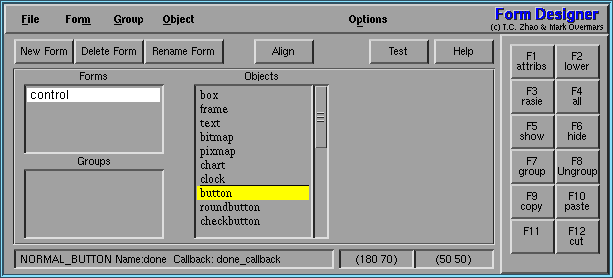

3. Form Designer -GUI builder
4. First Example
5. The Basic Steps
   1. Initialize Form
   2. Defining Forms
   3. Showing Forms
   4. Main Loop
6. Things that can go on a Form
   1. Boxes
   2. Text
   3. Buttons
   4. Sliders
   5. Input fields
   6. Grouping Objects
   7. Hiding and Showing Objects
   8. Deactivating and reactivating Objects
7. Changing Attributes
   1. Color
   2. Bounding Boxes
   3. Label (Text) Attributes
   4. Some Goodies
8. Interaction - Callbacks
   1. Callback with Objects

-I	(uppercase i) location to find include files
-L	(uppercase L) location to find libraries
-l	(lowercase L) names of the libraries program needs to be linked to

CFLAGS	= -O

LIB		= -L/opt/xforms/FORMS -lforms  \
			-L/opt/X11R5/lib -lX11         \
			-lnsl -lsocket -lm

INCL	= -I/opt/xforms/FORMS  -I/opt/X11R5/lib

CC		= g++

.c.o:
	$(CC) $(CFLAGS) $(INCL) -c $*.c

.o:
	$(CC) $(CFLAGS) -o $* $*.o $(LIB)

.c:
	$(CC) $(CFLAGS) $(INCL) -c $*.c
	$(CC) $(CFLAGS) -o $* $*.o $(LIB)

clean:
	rm *.o

#include <string.h>

#include "forms.h"

#include <string.h>
#include "forms.h"

int main( int argc,  char *argv[] )
{
	FL_FORM *simpleform;

	fl_initialize( argv[0], "FormDemo", 0, 0, &argc, argv );

	simpleform = fl_bgn_form( FL_UP_BOX, 230, 160 );
		fl_add_button( FL_NORMAL_BUTTON,
						40, 50, 150, 60,
						"Push Me" );
	fl_end_form(  );

	fl_show_form( simpleform,  FL_PLACE_MOUSE,
				FL_NOBORDER,  NULL );

	fl_do_forms(  );
	fl_hide_form( simpleform );
	return 1;
}

FL_UP_BOX

Comes out of the screen

FL_DOWN_BOX

Goes down into the screen

FL_FLAT_BOX

Flat box with no border

FL_BORDER_BOX

Flat box with border

FL_FRAME_BOX

Flat box with engraved border

FL_SHADOW_BOX

Flat box with a shadow

FL_ROUNDED_BOX

Rounded box

FL_RFLAT_BOX

Rounded box without border

FL_RSHADOW_BOX

Rounded box with shadow

FL_OVAL_BOX

Box shaped like an ellipse

FL_NO_BOX

No box at all

FL_PLACE_MOUSE | FL_PLACE_FREE

#include <string.h>
#include "forms.h"

int main( int argc,  char *argv[] )
{
	FL_FORM *simpleform;

	fl_initialize( argv[0], "FormDemo", 0, 0, &argc, argv );

	simpleform = fl_bgn_form( FL_UP_BOX, 230, 160 );
		fl_add_button( FL_NORMAL_BUTTON,
						40, 50, 150, 60,
						"Push Me" );
	fl_end_form(  );

	fl_show_form( simpleform,  FL_PLACE_MOUSE,
				FL_NOBORDER,  NULL );

	fl_do_forms(  );
	fl_hide_form( simpleform );
	return 1;
}

#include <iostream.h>
#include <string.h>
#include "forms.h"

int main( int argc,  char *argv[] )
{
	FL_FORM* niceForm;
	FL_FORM* meanForm;

	fl_initialize( argv[0], "FormDemo", 0, 0, &argc, argv );

	niceForm = fl_bgn_form( FL_UP_BOX, 150, 100 );
		fl_add_button( FL_NORMAL_BUTTON,
					40, 50, 100, 60, "Please Push Me" );
	fl_end_form(  );

	meanForm = fl_bgn_form( FL_UP_BOX, 150, 100 );
		fl_add_button( FL_NORMAL_BUTTON,
					40, 50, 100, 60,  "Push Me or Else!" );
	fl_end_form(  );

	fl_show_form( niceForm,  FL_PLACE_MOUSE,
				FL_TRANSIENT,  "Nice" );
	fl_show_form( meanForm,  FL_PLACE_CENTER,
				FL_FULLBORDER,  "Watch Out!" );

	cout << "Get ready to Start" << endl;
	fl_do_forms(  );

	cout << "User selected something" << endl;
	fl_hide_form( niceForm);
	fl_do_forms(  );

	cout << "The End " << endl;
	return 1;
}

int main( int argc,  char *argv[] )
{
	 FL_FORM *form;
	 FL_OBJECT *yes,  *no,  *button;

	fl_initialize( argv[0],  "FormDemo",  0,  0 , &argc,  argv );

	form = fl_bgn_form( FL_UP_BOX, 320, 120 );

		fl_add_box( FL_NO_BOX, 160, 80, 0, 0,
					"Do you want to Quit?" );
		yes = fl_add_button( FL_NORMAL_BUTTON,
						40, 20, 80, 30, "Yes" );
		no	= fl_add_button( FL_NORMAL_BUTTON,
						200, 20, 80, 30, "No" );
	fl_end_form(	);

	fl_show_form( form, FL_PLACE_MOUSE,
				FL_NOBORDER, NULL );

	do
		button= fl_do_forms(  );
	while ( button != yes );

	fl_hide_form( form );
	return 0;
}

FL_UP_BOX

Comes out of the screen

FL_DOWN_BOX

Goes down into the screen

FL_FLAT_BOX

Flat box with no border

FL_BORDER_BOX

Flat box with border

FL_FRAME_BOX

Flat box with engraved border

FL_SHADOW_BOX

Flat box with a shadow

FL_ROUNDED_BOX

Rounded box

FL_RFLAT_BOX

Rounded box without border

FL_RSHADOW_BOX

Rounded box with shadow

FL_OVAL_BOX

Box shaped like an ellipse

FL_NO_BOX

No box at all

#include <string.h>
#include "forms.h"

int main( int argc,  char *argv[] )
{
	FL_FORM *boxExample;
	FL_OBJECT  plainBox;
	FL_OBJECT  fancyBox;

	fl_initialize( argv[0], "FormDemo", 0, 0, &argc, argv );

	boxExample = fl_bgn_form( FL_UP_BOX, 150, 150 );
		myBox = fl_add_box( FL_BORDER_BOX,
						10, 10, 100, 50, "Plain Jane" );
		fancyBox = fl_add_box( FL_FRAME_BOX,
						10, 70, 100, 50, "\010Look Out" );

		// set box color
		fl_set_object_color( fancyBox, FL_RED, 0 );

		// set label color
		fl_set_object_lcol( fancyBox, FL_GREEN );

		// set label font size
		fl_set_object_lsize( fancyBox, FL_LARGE_SIZE );

	fl_end_form(  );

	fl_show_form( boxExample,  FL_PLACE_MOUSE,
				FL_FULLBORDER,  "Boxes" );

	fl_do_forms(  );
	fl_hide_form( boxExample);
	return 1;
}

"\010Hi Mom"

Hi Mom

FL_NORMAL_BUTTON	Returns value when released

FL_PUSH_BUTTON	Stays pushed until pushed again

FL_TOUCH_BUTTON	Returns value as long as it is pushed

FL_RADIO_BUTTON	Switches off other radio buttons

FL_INOUT_BUTTON	Returns value when pushed and released

FL_RETURN_BUTTON	Like normal button but reacts on return

#include <string.h>

#include "forms.h"



FL_FORM *form;

FL_OBJECT *button[8],  *box[8],  *exitButton;



void makeform( void )

{

	int i;

	form = fl_bgn_form( FL_UP_BOX, 400, 400 );

	for ( i=0; i<8; i++ )

	{

		button[i] = fl_add_button( FL_PUSH_BUTTON,

							 40, 60+40*i, 80, 30, "" );

		fl_set_object_color( button[i], FL_BLACK+i+1,

								FL_BLACK+i+1 );

		box[i] = fl_add_box( FL_DOWN_BOX, 150+30*i,

								40, 25, 320, "" );

		fl_set_object_color( box[i], FL_BLACK+i+1,

								FL_BLACK+i+1 );

		fl_hide_object( box[i] );

	}

	exitButton = fl_add_button( FL_NORMAL_BUTTON,

							40, 20, 80, 30, "Exit" );

	fl_end_form(	);

}



int

main( int argc,  char *argv[] )

{

	FL_OBJECT *obj;

	int i;



	fl_initialize( argv[0],  "FormDemo",  0,  0 , &argc,  argv );



	makeform(	);

	fl_show_form( form, FL_PLACE_CENTER,

						FL_NOBORDER, NULL );

	do

	{

		obj = fl_do_forms(	);

		for ( i=0; i<8; i++ )

			if ( obj == button[i] )

				if ( box[i]->visible )

					fl_hide_object( box[i] );

				else

					fl_show_object( box[i] );

	} while ( obj != exitButton );



	fl_hide_form( form );

	return 0;

}

#include "forms.h"

FL_FORM *buttons;
FL_OBJECT *readyobj;

#include "nomail.xbm"
#include "newmail.xbm"
#include "crab.xpm"
#include "crab45.xpm"

static void bitmapbutton( FL_OBJECT *ob,  long q )
{
	int set = fl_get_button( ob );
	fl_set_bitmapbutton_data( ob,  newmail_width,
		newmail_height,
		 set ? nomail_bits:newmail_bits );
}

static void pixmapbutton( FL_OBJECT *ob,  long q )
{
	 int set = fl_get_button( ob );
	 fl_set_pixmapbutton_data( ob,  set ? crab45:crab );
}


void create_form_buttons( void )
{
	FL_OBJECT *obj;

	if ( buttons )
		 return;

	buttons = fl_bgn_form( FL_NO_BOX, 320, 380 );
		obj = fl_add_box( FL_UP_BOX, 0, 0, 320, 380, "" );

		readyobj = obj = fl_add_button( FL_NORMAL_BUTTON,
					190, 15, 110, 30, "READY" );

		obj = fl_add_button( FL_NORMAL_BUTTON,
					125, 315, 150, 35, "Button" );
		fl_set_object_boxtype( obj, FL_SHADOW_BOX );
		fl_set_object_color( obj, FL_GREEN, FL_RED );

		obj = fl_add_bitmapbutton( FL_PUSH_BUTTON,
								180, 100, 80, 70, "" );
		fl_set_object_boxtype( obj, FL_NO_BOX );
		fl_set_object_callback( obj,  bitmapbutton, 0 );
		fl_set_bitmapbutton_data( obj, newmail_width,
						  newmail_height,  newmail_bits );

		obj = fl_add_pixmapbutton( FL_PUSH_BUTTON,
								200, 60, 45, 40, "" );
		fl_set_object_callback( obj,  pixmapbutton, 0 );
		fl_set_pixmapbutton_data( obj, crab );

		fl_bgn_group(	);
			obj = fl_add_roundbutton( FL_RADIO_BUTTON,
								25, 300, 40, 50, "" );
			fl_set_object_boxtype( obj, FL_BORDER_BOX );
			fl_set_object_color( obj, FL_MCOL, FL_RED );

			obj = fl_add_roundbutton( FL_RADIO_BUTTON,
									25, 255, 40, 50, "" );
			fl_set_object_boxtype( obj, FL_BORDER_BOX );
			fl_set_object_color( obj, FL_MCOL, FL_GREEN );

			obj = fl_add_roundbutton( FL_RADIO_BUTTON,
									25, 205, 40, 50, "" );
			fl_set_object_boxtype( obj, FL_BORDER_BOX );
			fl_set_object_color( obj, FL_MCOL, FL_BLUE );
		fl_end_group(	);

		fl_bgn_group(	);
			obj = fl_add_frame( FL_ENGRAVED_FRAME,
									115, 205, 75, 95, "" );
			obj = fl_add_box( FL_FLAT_BOX,
							125, 295, 40, 10, "CheckB" );
			obj = fl_add_checkbutton( FL_RADIO_BUTTON,
							 120, 265, 55, 30, "Red" );
			fl_set_object_color( obj, FL_MCOL, FL_RED );
			obj = fl_add_checkbutton( FL_RADIO_BUTTON,
							 120, 235, 55, 30, "Green" );
			fl_set_object_color( obj, FL_MCOL, FL_GREEN );
			obj = fl_add_checkbutton( FL_RADIO_BUTTON,
								120, 205, 55, 30, "Blue" );
			fl_set_object_color( obj, FL_MCOL, FL_BLUE );
		fl_end_group(	);

		fl_bgn_group(	);

			obj = fl_add_lightbutton( FL_RADIO_BUTTON,
							20, 130, 125, 35, "	Red" );
			fl_set_object_color( obj, FL_COL1, FL_RED );

			obj = fl_add_lightbutton( FL_RADIO_BUTTON,
								20, 95, 125, 35, "	Green" );
			fl_set_object_color( obj, FL_COL1, FL_GREEN );

			obj = fl_add_lightbutton( FL_RADIO_BUTTON,
								20, 60, 125, 35, "	Blue" );
			fl_set_object_color( obj, FL_COL1, FL_BLUE );

		fl_end_group(	);
		fl_bgn_group(	);

			obj = fl_add_roundbutton( FL_RADIO_BUTTON,
								 230, 265, 55, 30, "Red" );
			fl_set_object_color( obj, FL_MCOL, FL_RED );

			obj = fl_add_frame( FL_SHADOW_FRAME,
								225, 205, 70, 95, "" );

			obj = fl_add_roundbutton( FL_RADIO_BUTTON,
							 230, 205, 55, 30, "Blue" );
			fl_set_object_color( obj, FL_MCOL, FL_BLUE );

			obj = fl_add_roundbutton( FL_RADIO_BUTTON,
								230, 235, 55, 30, "Green" );
			fl_set_object_color( obj, FL_MCOL, FL_GREEN );

			obj = fl_add_roundbutton( FL_RADIO_BUTTON,
								230, 265, 55, 30, "Red" );
			fl_set_object_color( obj, FL_MCOL, FL_RED );
		fl_end_group(	);
	fl_end_form(	);
}

int
main( int argc,  char *argv[] )
{
		fl_initialize( argv[0], "FormDemo", 0, 0, &argc,  argv );

		create_form_buttons(	);

		fl_show_form( buttons,  FL_PLACE_CENTER,
								FL_NOBORDER,  0 );

		while ( fl_do_forms(	) != readyobj );
			;
		return 0;
}

FL_OBJECT*  fl_add_slider( sliderType, XCoordinate,
						YCoordinate, width, height, label );

void fl_set_slider_value( FL_OBJECT* aSlider, double value );

void fl_set_slider_bounds( FL_OBJECT* aSlider,
				double minValue, double maxValue );

double fl_get_slider_value( FL_OBJECT* aSlider  );

#include <iostream.h>
#include <string.h>
#include "forms.h"

int main( int argc,  char *argv[] )
{
	FL_FORM*  form;
	FL_OBJECT* slider;

	fl_initialize( argv[0], "FormDemo", 0, 0, &argc, argv );

	form = fl_bgn_form( FL_UP_BOX, 150, 190 );
		slider = fl_add_slider( FL_VERT_SLIDER, 30, 30, 60,
							 120, "" );
		 fl_set_slider_bounds( slider, -1, 1 );
		 fl_set_slider_value( slider, 0 );
	fl_end_form(  );

	fl_show_form( form,  FL_PLACE_CENTER,
				FL_FULLBORDER,  "Slide" );

	cout << "Get ready to Start" << endl;
	fl_do_forms(  );

	cout << "The value is" << fl_get_slider_value( slider )  << endl;
	fl_hide_form( form);
	return 1;

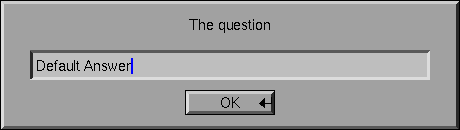

FL_OBJECT*  fl_add_input( inputType, XCoordinate,
						YCoordinate, width, height, label );

void fl_set_input( FL_OBJECT* input, char* default text );

void fl_set_input_color( FL_OBJECT* input, textColor, cursorColor );

[const] char* fl_get_input(  FL_OBJECT* input );

void fl_set_object_focus( FL_FORM* aForm, FL_OBJECT* input );

FL_NORMAL_INPUT	Any text can be typed
FL_FLOAT_INPUT	Only float values can be typed
FL_INT_INPUT	Only int values can be typed
FL_MULTILINE_INPUT	Allows for multiple lines
FL_SECRET_INPUT	Does not show text typed
FL_HIDDEN_INPUT	Input field is invisible

#include <string.h>
#include "forms.h"

int main( int argc,  char *argv[] )

	FL_FORM *buttons;

	buttons = fl_bgn_form( FL_NO_BOX, 320, 380 );
		fl_bgn_group(	);
			fl_add_roundbutton( FL_RADIO_BUTTON,
								25, 300, 40, 50, "First" );

			fl_add_roundbutton( FL_RADIO_BUTTON,
								25, 255, 40, 50, "Second" );

			fl_add_roundbutton( FL_RADIO_BUTTON,
								25, 205, 40, 50, "Third" );
		fl_end_group(	);
	fl_end_form(  );

	fl_show_form( buttons ,  FL_PLACE_MOUSE,
				FL_FULLBORDER,  "buttons " );

	fl_do_forms(  );
	fl_hide_form( buttons );
	return 1;
}

int main( int argc,  char *argv[] )
{
	 FL_FORM *form;
	 FL_OBJECT *yes,  *no,  *button;

	fl_initialize( argv[0],  "FormDemo",  0,  0 , &argc,  argv );

	form = fl_bgn_form( FL_UP_BOX, 320, 120 );

		fl_add_box( FL_NO_BOX, 160, 80, 0, 0,
					"Do you want to Quit?" );
		yes = fl_add_button( FL_NORMAL_BUTTON,
						40, 20, 80, 30, "Yes" );
		no	= fl_add_button( FL_NORMAL_BUTTON,
						200, 20, 80, 30, "No" );
	fl_end_form(	);

	fl_hide_object( yes  )
	fl_show_form( form, FL_PLACE_MOUSE,
				FL_NOBORDER, NULL );

	fl_do_forms(  );
	fl_show_object( yes  );

	do
		button= fl_do_forms(  );
	while ( button != yes );

	fl_hide_form( form );
	return 0;
}

int main( int argc,  char *argv[] )
{
	 FL_FORM *form;
	 FL_OBJECT *yes,  *no,  *button;

	fl_initialize( argv[0],  "FormDemo",  0,  0 , &argc,  argv );

	form = fl_bgn_form( FL_UP_BOX, 320, 120 );

		fl_add_box( FL_NO_BOX, 160, 80, 0, 0,
					"Do you want to Quit?" );
		yes = fl_add_button( FL_NORMAL_BUTTON,
						40, 20, 80, 30, "Yes" );
		no	= fl_add_button( FL_NORMAL_BUTTON,
						200, 20, 80, 30, "No" );
	fl_end_form(	);

	fl_deactivate_object( yes  )
	fl_set_object_color( yes, FL_INACTIVE_COL );
	fl_show_form( form, FL_PLACE_MOUSE,
				FL_NOBORDER, NULL );

	fl_do_forms(  );
	fl_activate_object( yes );
	fl_set_object_color( yes, FL_TOMATO );

	fl_do_forms(  );
	return 0;
}

void fl_set_object_color( FL_OBJECT* aThing, color1, color2 );

	FL_BLACK,
	FL_RED,
	FL_GREEN,
	FL_YELLOW,
	FL_BLUE,
	FL_MAGENTA,
	FL_CYAN,
	FL_WHITE,

	FL_TOMATO,
	FL_INDIANRED,
	FL_SLATEBLUE,

	FL_COL1,
	FL_RIGHT_BCOL,
	FL_BOTTOM_BCOL,
	FL_TOP_BCOL,
	FL_LEFT_BCOL,
	FL_MCOL,

	FL_INACTIVE,
	FL_PALEGREEN,
	FL_DARKGOLD,

	FL_ORCHID,
	FL_DARKCYAN,
	FL_DARKTOMATO,
	FL_DARKORANGE,
	FL_DEEPPINK,
	FL_CHARTREUSE,
	FL_DARKVIOLET,
	FL_SPRINGGREEN,
	FL_DOGERBLUE,

void fl_set_object_bottype( FL_OBJECT* aThing, int boxtype );

FL_UP_BOX

Comes out of the screen

FL_DOWN_BOX

Goes down into the screen

FL_FLAT_BOX

Flat box with no border

FL_BORDER_BOX

Flat box with border

FL_FRAME_BOX

Flat box with engraved border

FL_SHADOW_BOX

Flat box with a shadow

FL_ROUNDED_BOX

Rounded box

FL_RFLAT_BOX

Rounded box without border

FL_RSHADOW_BOX

Rounded box with shadow

FL_OVAL_BOX

Box shaped like an ellipse

FL_NO_BOX

No box at all

void fl_set_object_lcol( FL_OBJECT* aThing, FL_COLOR color );

void fl_set_object_lsize( FL_OBJECT* aThing, int LabelSize );

void fl_set_object_lstyle( FL_OBJECT* aThing, int FontStyle );

#include "forms.h"

int main( int argc,  char *argv[] )
{
	int answer;
	int NumberOfButtons;	// range 1, 2, 3
	char* UserText ;

	fl_show_message("Line one of messge", "Line two of messge",
					"Line 3 of messge");

	const int CENTERED = 1;
	const int NOTCENTERED = 0;
	fl_show_alert("Line one of messge", "Line two of messge",
					"Line 3 of messge", CENTERED );

	answer = fl_show_question("Answer = 1 if user selects yes",
				"Answer = 0 if user selects no", "");

	NumberOfButtons = 2;
	answer = fl_show_question("Line 1", "Line 2", "Line3",
			NumberOfButtons , "Button label 1",
			"Button label 2", "" );

	UserText = fl_show_input("The question", "Default Answer" );

	return 1;
}

void yesButtonPressed( FL_OBJECT*  theButton, long NotUsed) {
	cout << "The yes button was pressed" << endl;
	exit(0);
};

void noButtonPressed( FL_OBJECT*  theButton, long color) {
	cout << "The no button was pressed" << endl;
	fl_set_object_color( theButton,  color, 	color);
};

int main( int argc,  char *argv[] )
{
	 FL_FORM *form;
	 FL_OBJECT *yes,  *no,  *button;

	fl_initialize( argv[0],  "FormDemo",  0,  0 , &argc,  argv );

	form = fl_bgn_form( FL_UP_BOX, 320, 120 );

		fl_add_box( FL_NO_BOX, 160, 80, 0, 0, "Quit?" );
		yes = fl_add_button(FL_NORMAL_BUTTON,
								40, 20, 80, 30, "Yes" );

		fl_set_object_callback( yes, yesButtonPressed, 0 );

		no	= fl_add_button( FL_NORMAL_BUTTON,
									200, 20, 80, 30, "No" );
		fl_set_object_callback( no, noButtonPressed,
								(long) FL_RED);
	fl_end_form(	);

	fl_show_form( form, FL_PLACE_MOUSE,
				FL_NOBORDER, NULL );

	fl_do_forms(  );
	return 0;
}

#include <iostream.h>
#include <string.h>
#include "forms.h"

class Counter {
	public:
		void increase() { count++;};
		void decrease() { count--;};
		Counter() {count = 0;};
		int getCount() { return count;};
	private:
		int count;

};

void decreaseButtonPressed( FL_OBJECT* bttn, long counterPointer) {

	Counter* CurrentCount = (Counter*) counterPointer;

	CurrentCount ->decrease();

	cout << "The count is"  << CurrentCount ->getCount() << endl;
};

void increaseButtonPressed( FL_OBJECT* bttn, long counterPointer) {

	Counter* CurrentCount = (Counter*) counterPointer;

	CurrentCount ->increase();

	cout << "The count is"  << CurrentCount ->getCount() << endl;
};
int main( int argc,  char *argv[] )
{
	 FL_FORM *form;
	 FL_OBJECT *increase,  *decrease;
	Counter TheCount;

	fl_initialize( argv[0],  "FormDemo",  0,  0 , &argc,  argv );

	form = fl_bgn_form( FL_UP_BOX, 320, 120 );

		fl_add_box( FL_NO_BOX, 160, 80, 0, 0,
					"Do you want to Quit?" );
		increase = fl_add_button( FL_NORMAL_BUTTON,
						40, 20, 80, 30, "Increase" );

		fl_set_object_callback( increase, increaseButtonPressed,
							(long) &TheCount );

		decrease = fl_add_button( FL_NORMAL_BUTTON,
						200, 20, 80, 30, "Decrease" );

		fl_set_object_callback( decrease, decreaseButtonPressed,
							(long) &TheCount );
		fl_end_form(	);

	fl_show_form( form, FL_PLACE_MOUSE,
				FL_FULLBORDER, NULL );

	fl_do_forms(  );
	return 0;
}
